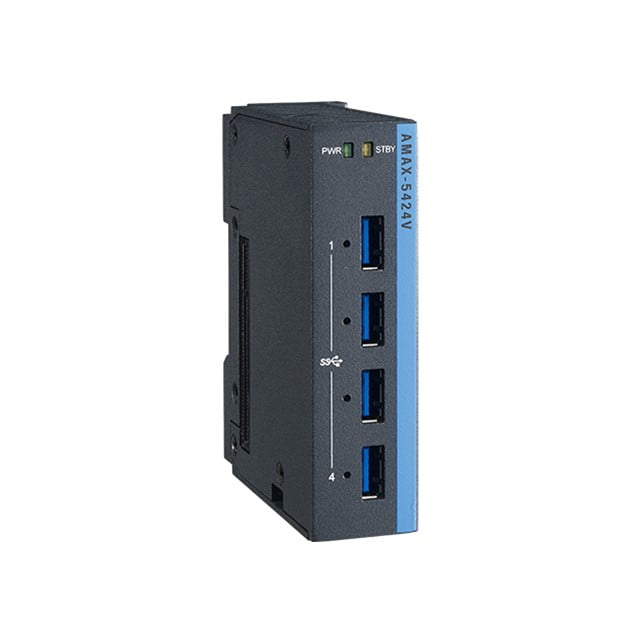

Advantech AMAX-5424V-A 4-port USB3.0 Vision Frame Grabber Module

Rp5.047.392

Host Bus 4-lane Gen 2.0 PCIe interface, compliant with PCIExpress Base Specification, Revision 2.0
Controller Host Controller – Fresco FL1100Compliant with USB 3.0 Specification and Intel^® xHCI Specification, Revision 1.0
Max. Current: 1500 mA maximum per port
Data Transfer Rate: SuperSpeed (5.0 Gbps); High Speed (480.0 Mbps); Full Speed (12.0 Mbps); Low Speed (1.5 Mbps)

Deskripsi

Category	Attribute	Value
USB Port	Controller	Host Controller – Fresco FL1100, Compliant with USB 3.0 Specification and Intel® xHCI, Specification Revision 1.0
USB Port	Data Transfer Rate	SuperSpeed (5.0 Gbps), High Speed (480.0 Mbps), Full Speed (12.0 Mbps), Low Speed (1.5 Mbps)
USB Port	Host Bus	4-lane Gen 2.0 PCIe interface, compliant with PCI Express Base Specification, Revision 2.0
USB Port	Max. Current	1500 mA maximum per port
General	Bus Interface	1 x PCIe x4
Hardware	Certification	CE, FCC class A
Hardware	LED Indicators	PWR, Standby
Hardware	Power Consumption	2.5 W @ 24 VDC
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-10~60 °C (14~140 °F)
Environment	Relative Humidity	5~95% RH (non-condensing)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Mechanical	Enclosure	Aluminum housing
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	220 g
